Home > Product > Double-side Lapping&Polishing m/c

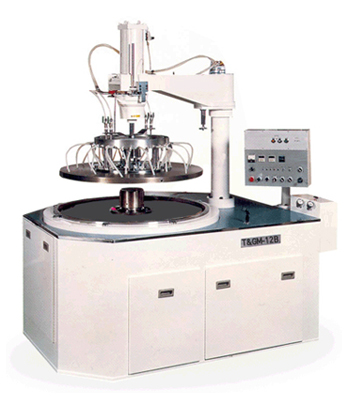

Double-side Lapping&Polishing m/c
Double-side Lapping&Polishing m/c
1. Adopt up-down variable velocity of surface plate
The top board drive cycle is made of rapid descend → SLOW descend → SLOW ascend → rapid ascend motions, so smooth manufacturing is done with almost no impacts on the workpiece.
2. Adopt top board pressure variable mechanism
The pressure effect on the top board workpiece is initial low pressure → processed low pressure → COUNER BLANCE, so that presents the best condition of workpiece with the possibility for each precise adjustment depending on the work.
3. Adopt Continuously Variable Transmission
The lapping adjustment is very simple for top board, lower plate and SUN GEAR, as their spinning speed and direction are made continuously by the INVERT MOTOR which drives independently.
4. SOFT START, SOFT STOP
The surface plate drive applies SOFT START, SOFT STOP functions, possible to adjust in smooth motions and can prevent the chipping phenomenon of the workpiece.

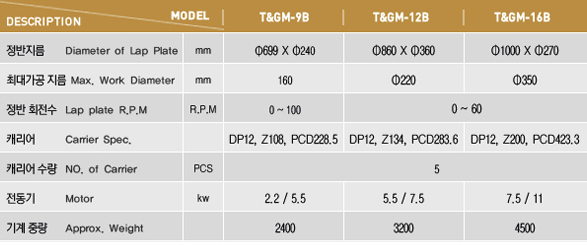

기계사양
