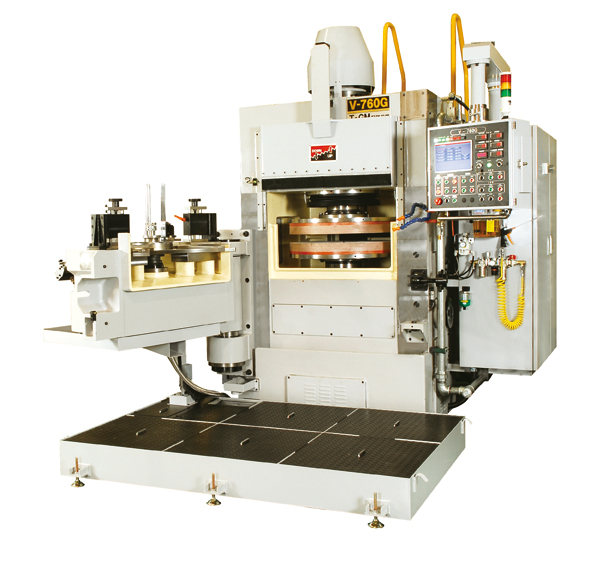

| The V-7G(vertical two-head planar grinder) containing high technology is a highly reliable machine to face broad grinding as a high-performance, high-efficiency and high-accuracy device that can grind a thin plate(minimum 0.8mm) as well as cut a work strongly. |
|
| This facilitates the exchange of a grinding stone and a carrier due to the tilting structure of a carrier device frame, and realizes strong cutting and smooth grinding through the adoption of a large-capacity spindle driven motor (30kW inverter driven). |
|
| The grinding stone angle adjustor installed at the top of a spindle has an easily controllable structure by a worker and is designed of a tilting structure enabling fine, precise and accurate control to enable the realization of efficient work through its convenience and minimized angle control time. |
|
| The dresser has a strongly supported precise bearing structure to exert a high performance in enhancing the grind ability and accuracy of a work through the exact and prompt simultaneous dressing of the top and bottom grinding stones. |
